Product
The Trusted Standard in Banking Automation
EP-200
- Trust Accuracy, Advanced Detection
- Compact and Space-Efficient Design
- Patented DUST COVER
Technical Information
Feature
- Stable Feeding and Stacking Structure
- Reducing noise due to minimum number of rollers
- Remove front dust emissions using Dust Cover
- Operation Mode with CNT, Mixed, FACE, DD etc.
- Both side Image Scan at once with dual CIS
- Get 9 Image with 1 Note feeding with dual CIS
- Easy Upgrade with USB Memory Stick
Hopper Capacity
Stacker Capacity
Reject Capacity
Speed
Note Size(W)
Note Size(H)
Note Thickness
Sensor
Interface
Input Power
Power Consumption

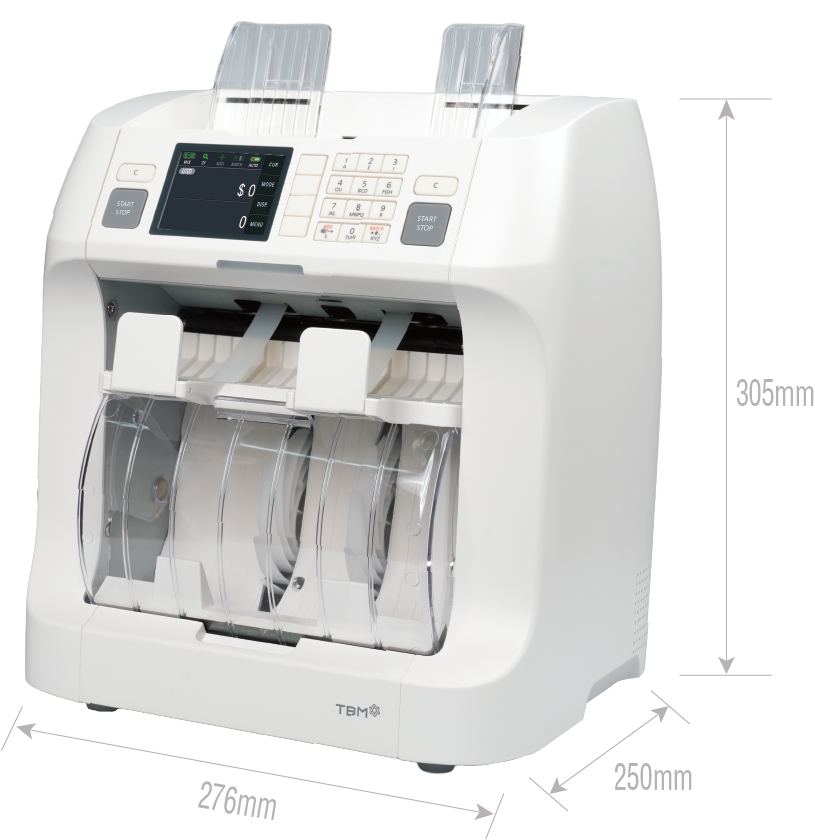

Size (W*H*D)
Weight
300 Notes
200 Notes
100 Notes
1000 / 800 NPM
120 ~ 180 mm
60 ~ 90 mm
0.08 ~ 0.12 mm
Dual CIS, UV, IR, MG
Serial,USB-A,USB-B,LAN
100 ~ 240VAC, 50/60Hz
50W
276*305*250mm
Approx. 7.8 Kg
* The Specifications are subject to change without prior notice.

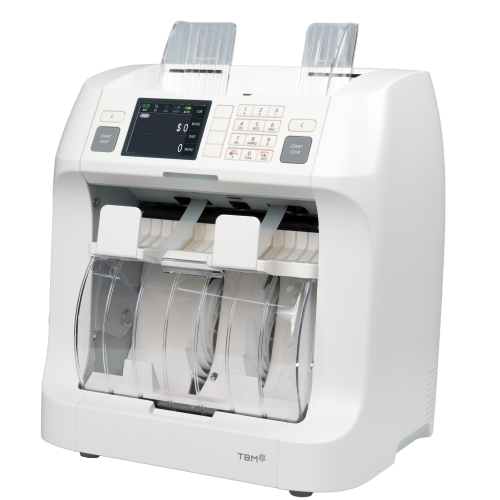

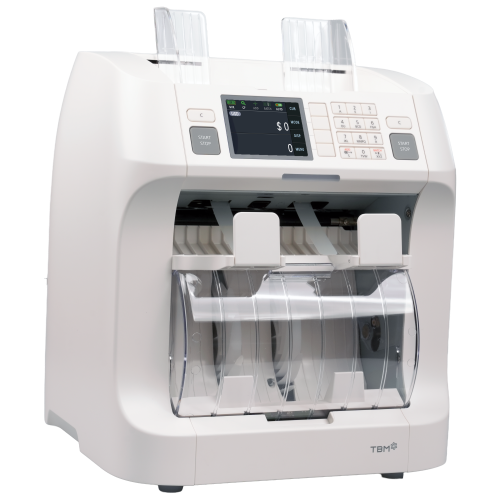

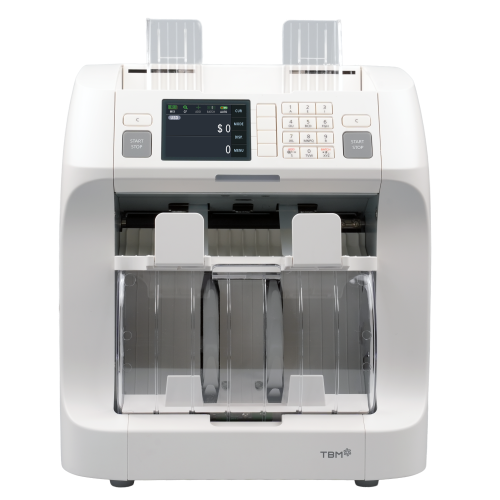

EP-200 Video & images
