Product

The Trusted Standard in Banking Automation

EP-300

  • Trust Accuracy, Advanced Detection, Exceptional Speed
  • 5-inch Touch screen
  • Patented DUST COVER
BRUSHER VIEW

Why Choose it?

Ultra-Fast · Ultra-Precise · Ultra-Secure

  • 5" Color Touch LCD

    Easy and intuitive operation with a modern interface

  • Reliable Processing

    Handles up to 500 notes input, 200 notes stacker, and 100 notes reject capacity for efficient bulk operations

  • Accurate Counterfeit & Error Detection

    Dual CIS with UV/IR/MG sensors ensures precise detection of counterfeit and damaged notes

  • Multiple Operation Modes

    Supports Mixed Counting, Face & Orientation Detection, Barcode, QR Code, MICR, and Full Image Scanning for diverse business needs

  • Comprehensive Record Management

    Dual-sided full-color scanning at 200 DPI, with captured images delivered to PC via High-Speed USB Transfer for verification and audit trails

  • Seamless Integration & Easy Upgrade

    High-speed USB/LAN connectivity and simple USB memory upgrades for smooth maintenance

Technical Information

Feature

  • Stable Feeding and Stacking Structure
  • Remove front dust emissions using Dust Cover
  • Operation Mode with CNT, Mixed, FACE, DD, Barcode, MICR, SCAN etc.
  • Both side Image Scan at once with dual CIS
  • Get 10 Image per 1 Note feeding with dual CIS
  • 200 DPI Resolution dual side full color scanning
  • High Speed Image Transfer to PC via USB
  • Easy Upgrade with USB Memory Stick
Hopper Capacity
Stacker Capacity
Reject Capacity
Speed (Mixed Etc.)
Speed (OCR)
Speed (MICR)
Note Size(W)
Note Size(H)
Note Thickness
Sensor
Interface
Input Power
Power Consumption

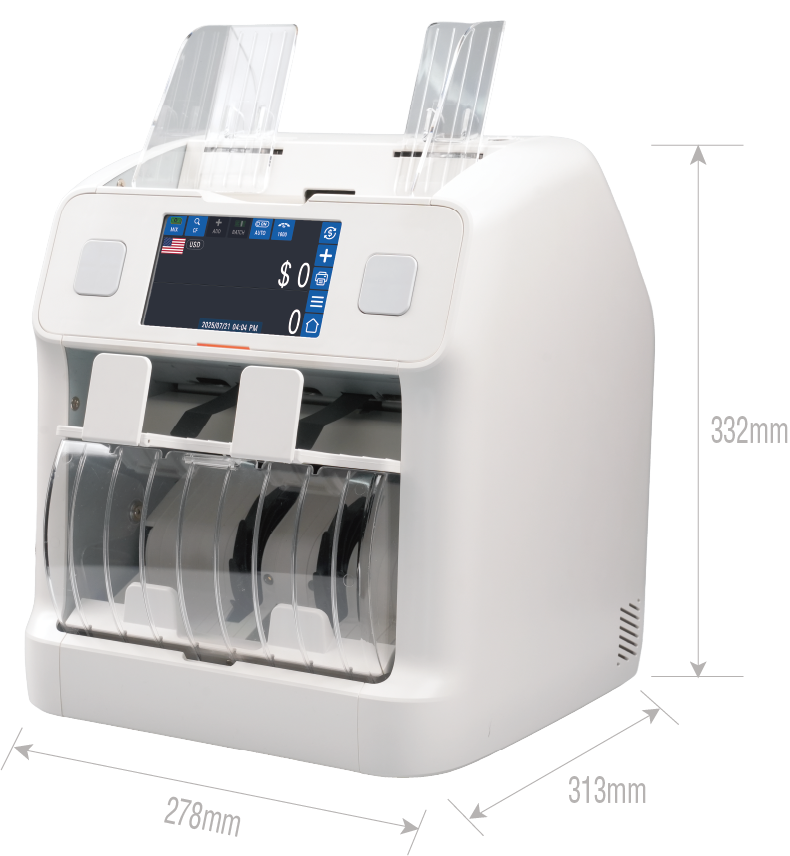

Size (W*H*D)
Weight
500 Notes
200 Notes
100 Notes
Upto 1600 NPM
Upto 1300 NPM
Upto 1100 NPM
120 ~ 180 mm
60 ~ 90 mm
0.08 ~ 0.12 mm
Dual CIS, UV, IR, MG
Serial,USB-A,USB-B,LAN
100 ~ 240VAC, 50/60Hz
90W
278*332*313 mm
Approx. 10.0 Kg
* The Specifications are subject to change without prior notice.

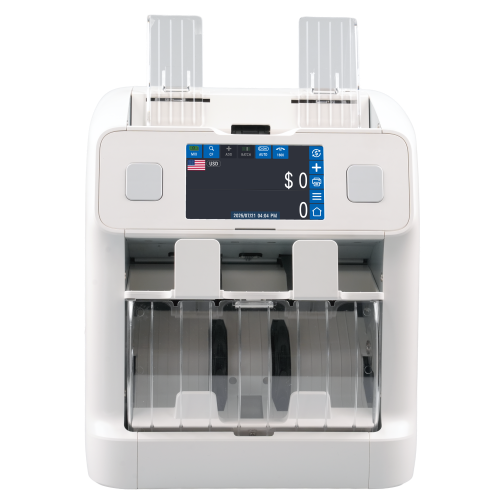

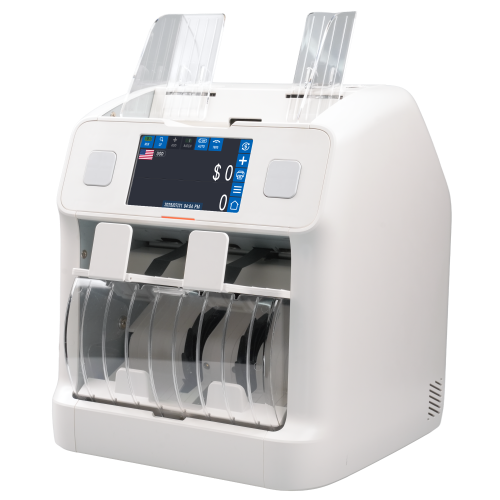

EP-300 Video & images
